China Modern Villa Prefab Kit House Modular Villa for export

FOB Reference Price:Get Latest Price
US $40-80 / Square Meter | 100 Square Meter/Square Meters (Min. Order)
Supply Ability:
200 Set/Sets per Month
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tailong
Model Number:
TL-PV
size:
40-200 square meter
certificate:
ISO9001:2000
color:
according to the customers' requirement
Type:
Light
Product Name:
Luxury
Application:
Steel Fabricated House
Door:
Rolling Door
Packaging & Delivery
Packaging Details
in bulk or according to the customers' requirement
Delivery Time
within 15-30 days fter received the deposit

China Modern Villa Prefab Kit House Modular Villa for export



The specification  of prefabricated homes:



Dimensions

6920*8220*4280mm

Structure

Lightweight steel structure frame.floor structure,roof beam

wall

75mm EPS sandwich panel with PVC decoration

Steel Bottom

2.5mm thickness C type steel

Roof

50mm EPS sandwich panel with stone coated metal roofing tile

Partition wall

50mm EPS sandwich panel

Subfloor

plywood

Floor

Laminate flooring or Flooring Covering

Window

Plastic steel window

Door

Double glazed door

kitchen

Sink with Cupboard(PVC Panel),water supply and drainage system

Bathroom

Shower,Seated Toilet,Wash Basin with Cupboard(PVC Panel),Towel Rack+Mirror+Paperboard

Other

Ceiling lamp,power receptacle,switch and circuit facilities



Drawing:



The description of prefabricated villia:

1. Outer heat preservation layer with air layer will ensure excellent heat preservation.

2.  Frame cavity provides pipelines for the full range of embedded space.

3.  Steel frames and gypsum board will improve fireproofing

4. Thinner walls will increase usable area by 6% to 10%.

5.  Walls with multi-layers composite materials will ensure good sound insulation.

6.  Meet needs of large span space.

7.  Roof truss space is usable, which will improve utilization of space usage.

8.  Bottom of the roof truss overhang can be used as floor truss , which will reduce the costs.

9. Triangular truss provides good stability, and can be installed easily and quickly.

10.  Meet requirements for pipes and lines installation.

11.  Save steel and improve utilization of steel usage.

12.  Design datas:Wind load:0.45kn/m2; Snow load:0.45kn/m2; Resisting seismic intensity:8; Floor living load:2.0kn/m2.

13.  Life of the houses: 15 years of roof, 50 years of the frames.

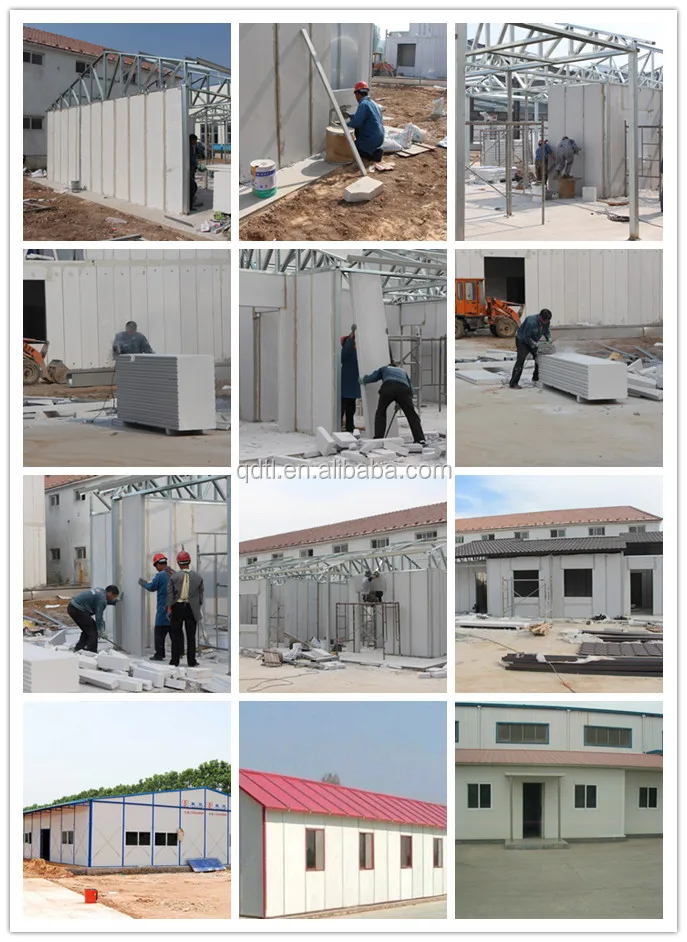

The construction process





Other advantages and services:

1. Can be made according to customer's idea

2. Time saving for construction

3. No pollution during construction

4. Use non-toxic materials

5. Insulation system reduces energy consumption

6. High degree of stiffness and light weight

7. Concrete foundation

8. Earthquake and wind resistance

9. Can be made according to customer's idea

10. Time saving for construction
