prefabricated metal engineering auto design steel structure workshop

FOB Reference Price:Get Latest Price
US $35-80 / Square Meters | 500 Square Meter/Square Meters (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 5 - 10 People
  • Factory Size: 10,000-30,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
  • Production Certification: 3
Trade Capacity >
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tailong construction
Model Number:
ISO 9000/9001/9004/19011: 2000; ISO 14000/14001
Column and Beam:
Welded H-section and Hot rolled I-section
C-section and Z-section
Roof and Wall panel:
EPS, PU ,Rock Wool sandwich panel
Sliding or Rool Up door
PVC or Aluminum Alloy
Safety,Water-proof,sound-insulated,hear-preservation etc.
Office,Conference room,Dormitory,Storage,Factory,shopping mall etc.
Light steel structure
Supply Ability
Supply Ability:
60000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
bundle or as customers
QingDao Port
Video Description


Prefabricated metal engineering auto design steel structure workshop



Product Description


prefabricated steel structure modern modular building can be used for workshop warehouse or building.Thie building  has two three-story main buildings of 90,000 square meters, and a corridor in the middle connects the two main buildings together.

Design standard: wind load 0.6 KN/m2; floor live load 5.0 KN/m2, because the building has operation workshop on each floor, so the floor load is relatively large, so it is a big test for our building structure.

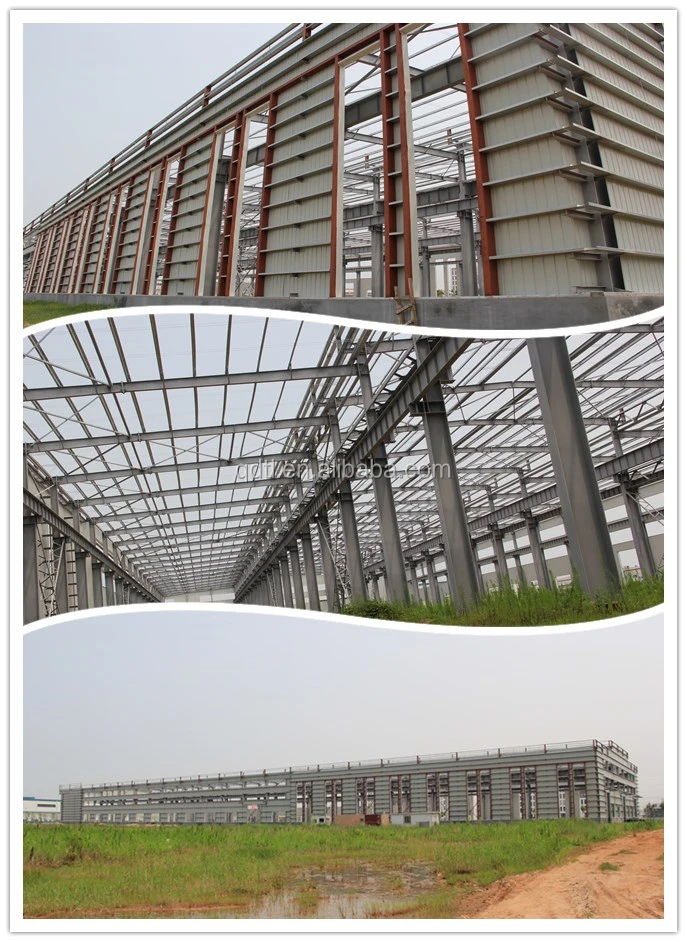

The building is 108 meters wide and 90 meters long. The building height is 23 meters and the total height is 13 meters. The first floor height is 13 meters. The second floor height is 4.5 meters. The third floor height is 5.5 meters. The overall frame design adopts box type column and h type steel beam. The floor surface adopts the cast-in-place concrete structure of the floor bearing board. The outer wall is made of 100mm rock wool composite board plus 100mm glass wool insulation and single layer 0.6mm steel plate combination. Wall. There is a large area of glass curtain wall decoration. Because the overall load of the building is relatively large. The requirements are relatively high, so all the columns are box-type columns, see the illustration. The entire project spans a large area, so the cross-section of the beam is also relatively large. It is a great test for us during the hoisting installation. The maximum beam height can be 1.8 meters. For such a huge project, we can install from the civil engineering to the steel structure. Construction. Very successful.
