Portal proof sandwich panel Prefabricated steel structure apartment building

FOB Reference Price:Get Latest Price
US $40-80 / Square Meters | 100 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard:
AISI, ASTM, GB
Grade:
Q235 Q235B Q345
Dimensions:
Customers' Requirement
Place of Origin:
Shandong, China (Mainland)
Brand Name:
tailong
Model Number:
BD
Type:
Heavy
Application:
Steel Fabricated House
product name:
Portal frame fire proof cement sandwich panel steel building
color::
all color /as customer required
windows::
PVC windows,aluminum windows
wall::
EPS sandwich pannel ,rock wool panel
roof::
EPS, ROCK WOOL, PU,single color steel corrugated sheet
Derusting::
ball blast
Door ::
color steel silding door or electric rolling gate
Surface::
painted or hot-dip galvanized
Performance::
safety ,water-proof ,sound insulated, hear-preservation etc.
Quality certificated::
CE ISO9001:2000
Supply Ability
Supply Ability:
20000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
The main steel frame is loaded in 40'OT and the wall and roof panels are loaded in 40'HQ of Portal frame fire proof cement sandwich panel steel building
Port
QINGDAO PORT
Lead Time :
45 days



Product Description

Portal proof sandwich panel Prefabricated steel structure apartment building

DJI_0015 - .jpgDJI_0021.jpgDJI_0046.jpg



NO

NAME

 Portal frame fire proof sandwich panel fabricated Prefabricated steel structure building

 1

Main structure

welding H steel or hot rolled H steel,all bolts connection straight cross-section orvariable cross-section



 2

Purlin:

 C section channel or Z section channel

 3

Roof cladding

 corrugated steel sheet or sandwich panel with fiber glass wool, EPS, rock wool, PU

 4

Wall cladding

 corrugated steel sheet or sandwich panel with fiber glass wool, EPS, rock wool, PU

 5

Column barcing

  angle steel or H section steel or steel pipe

 6

Knee brace

angle steel

 7

Roof ridge

corrugated steel sheet

 8

Wrapping cover

 color steel sheet

 9

Roof gutter

 color steel sheet

 10

Rainspout

 PVC pipe

 11

Design

  According to your drawings or some details needed.

 12

Fabrication

 Strictly fabricate every member based on the drawings confirmed.



prefabricated steel building material:

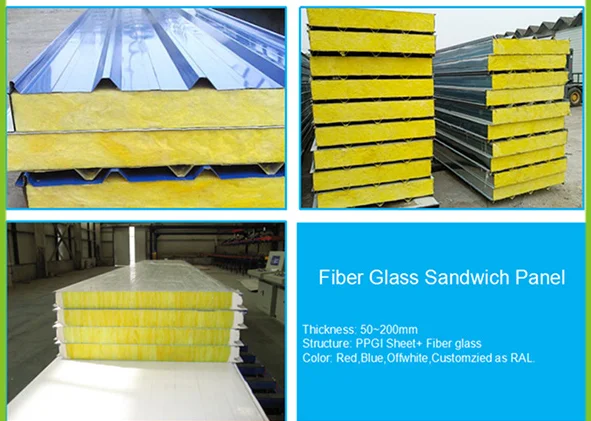

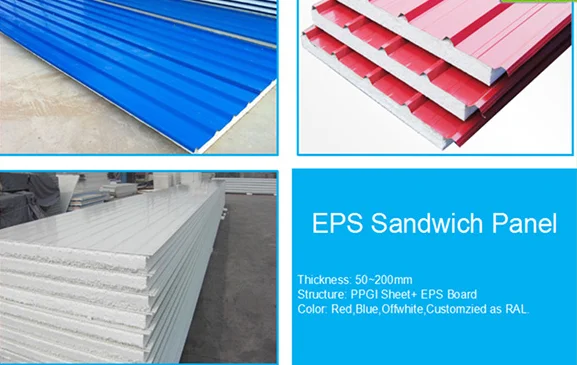

EPS sandwich panel.pngfiber glass sandwich panel.png

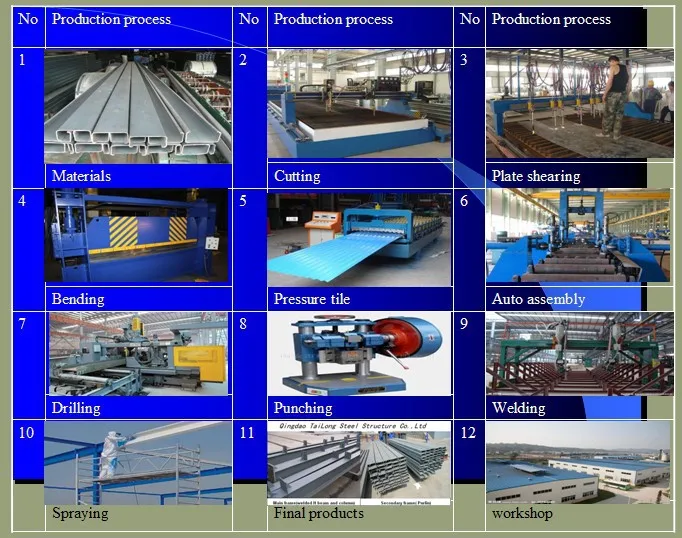

Production process of  Portal frame fire proof sandwich panel fabricated Prefabricated steel structure building



  QQ20140416164656

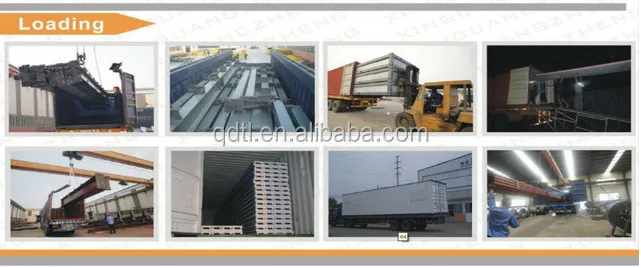

Packaging & Shipping



1.All of the steel column and beams ends and plates will be packed by the blanket to protect them from the crash in the container durning the shippment.

2.To make the loading more effieciently and saving the delivery cost, 40OT is prefered to loading the steel frames.

3.All the wall and roof panels will be filmed by two sides and fixed stably in the 40HQ container.

4.All the windows and doors will be protected by the bubble rapping papers and fixed stablely in the container.



packing shipping

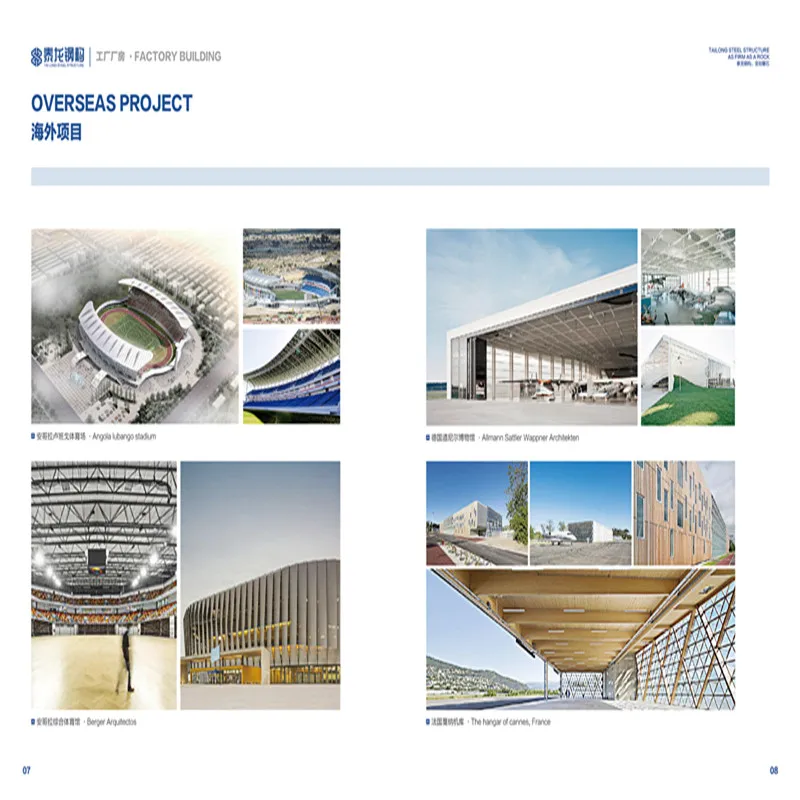

Project Show






Detection

 QQ20150320101313

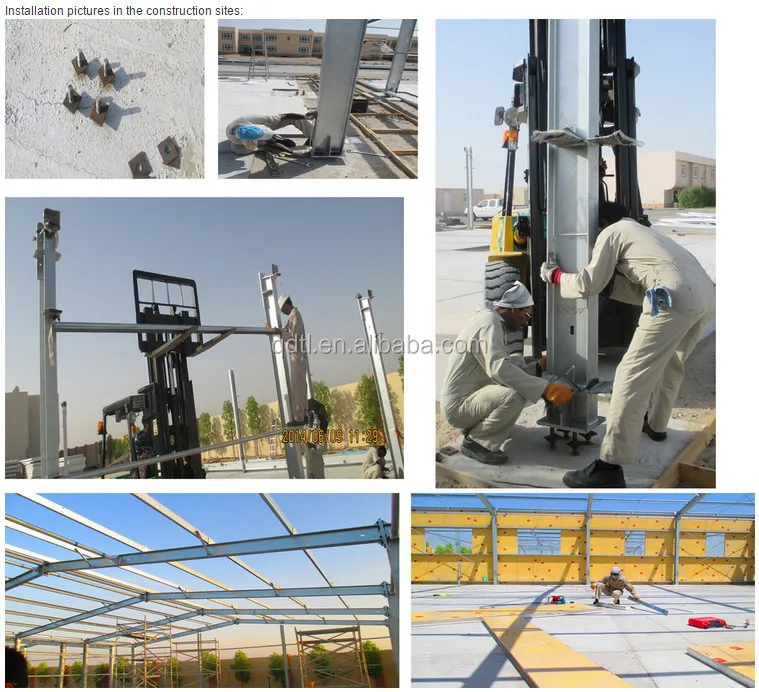

Installation

 We will send our engineer to your construction site to guide you.



2-3







Company Information

 This is Grace comes from Qingdao Tailong Steel Structure Co,. Ltd , we are the manufacturer and specialized in fabricated steel structure lines since 2003 , we have imported for 14years to all over the world,there is the professional engineer design team and salesmen to service for you for  prefabricated steel building,steel frame warehouse , you will get the good design, high quality ,best price and service from here.

Choose Tailong, we will make your building more strong and beautiful.



 .jpg

Certification:




Project Show:



Our Services



we have got the CE certificated for the light steel framing system. we can supply all the finishing materials that have the CE certificate.

You can provide us your drawing ,and we will produce as your drawings. Or we can design as your requirements if you don’t have a clear plan. We will provide our plans according to destination condition , people preference ,strong and durable use, economic cost, environment protection, etc.

we can supply the supervisor and engineer if client need.



FAQ

   1.why choose us?

we have professional design team ,sales team, high quality,best quality,best price and service, what is more ,your building will more strong and beautiful.

2.you need to supply the inforation as follows:

the size:length*width*height

the max wind-speed of construction site

the max  snow-load of construction site(if have)

3.How to install the prefabricated steel building?

we will send you the construction drawing ,and also our engineer will help you to install the project





If you have any question ,pls contact to me.
