Prefabricated steel frame structure modern warehouse

FOB Reference Price:Get Latest Price
US $30-90 / Square Meters | 100 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tailong
Model Number:
TL-WS
Color::
According to the customer
Application::
Workshop, Warehouse
Materials::
steel
Size::
According to the customer
Window:
Aluminum Alloy Window
Door:
Rolling Door
Application:
Storage Warehouse Structure
Type:
Light Steel Struture
Purlin:
C/Z Galvanized Steel(Q235)
Color:
Required
Supply Ability
Supply Ability:
20000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
bundle or as customers
Port
QingDao
Lead Time :
According to the product quantity
Video Description

Prefabricated Light Steel Frame Structure Modern Warehouse










Product Description





Main application:

We have professional designers,prefabricated steel frame warehouse will be satisfied by you , you should know the features of prefabricated steel frame warehouse  : Light weight & neat ,Quick construction speed ,Low price ,Energy saving,we can provide a range of services including design, installation,and our steel structure building standards come from USA, Austrialia,and europe,etc,the construction include warehouse,workshop,stadium,supermaket.

Description:

Prefabricated Light Steel Frame Structure Modern Warehouse is a metal structure fabricated with steel for the internal support and for exterior cladding, as opposed to steel framed buildings which generally use other materials for floors, walls, and external envelope. Steel buildings are used for a variety of purposes including storage, work spaces and living accommodation. They are classified into specific types depending on how they are used.

Components:

prefabricated famous steel structure buildings design
Main steel frameQ345Bhot rolled H section or Steel Welded H Section
PurlinQ235B Q345BC Section Steel or Z Section Steel

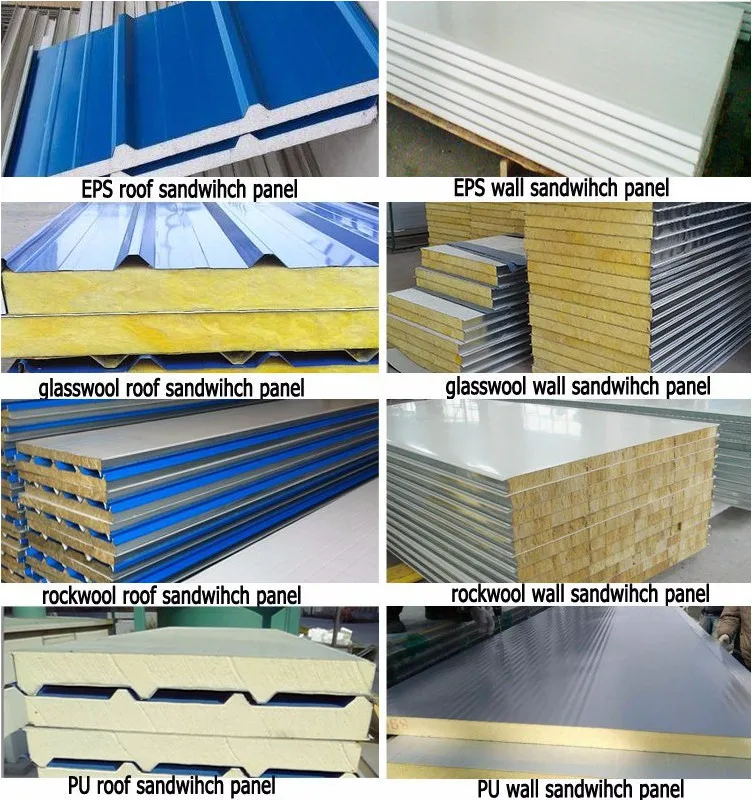

Roof CladdingSandwich Panel CorrugatedEPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and PU sandwich panel or steel sheet
Wall panelSandwich Panel CorrugatedEPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and PU sandwich panel or steel sheet
Tie RodQ235BCircular Steel Tube
BraceQ235B
Round Bar
Column & Transverse BraceQ235BAngle Steel or H Section Steel or Steel Pipe
Knee BraceQ235BAngle Steel
Roof GutterQ235BColor Steel Sheet
RainspoutPVCPVC Pipe
Doorplastic steel
Aluminum alloy
Open the door, sliding door, rolling door
Windowsplastic steel
Aluminum alloy
sliding windows
High Strengthen Bolt45#,20MnTiB,35VBStandard parts

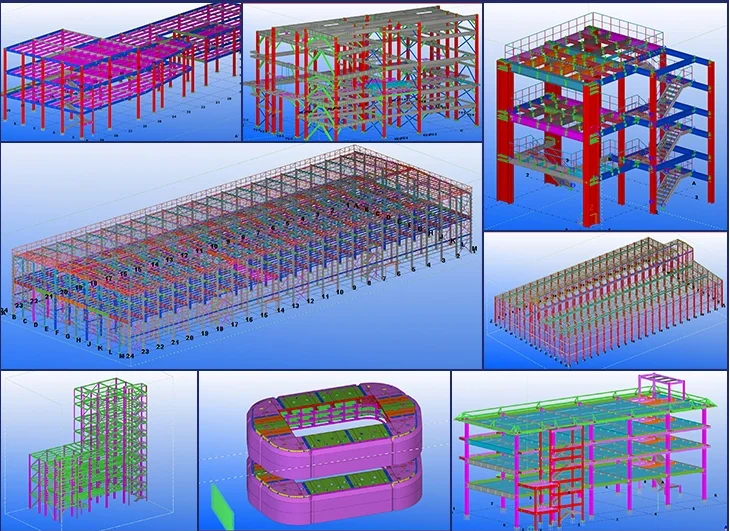

Drawing:


Material:


Specification:



Column and Beam

Q235, Q345 H section steel or square tube

Roof

Sandwich panels with EPS, rock wool, fiber glass.

Corrugated Steel sheet or with insulation layer

Wall

Steel mesh and tarpaulin or sandwich panel or steel sheet

Brace

Round bar

Purlin

C or Z section steel

Accessories

High strength bolts

Feeding system

As the customer’s requirements











Our Services



We are glad to bulid steel structre as your given drawing. If you need we design for you, pls supply us the following information:

1. Location: (where will be built?) _____country, area

2. Size: (length*width*height) _____m*_____m*_____m

3. Wind load: (max. wind speed)_____km/h

4. Snow load: (max. snow height) _____kn/m2, _____mm

5. Anti-earthquake: _____level

6. Brickwall: (needed or not)  If yes, 1.2m high or 1.5m high

7. Thermal insulation: If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.

8. Crane: (needed or not)  If yes, _____units, max. lifting weight____tons; max. lifting height _____m

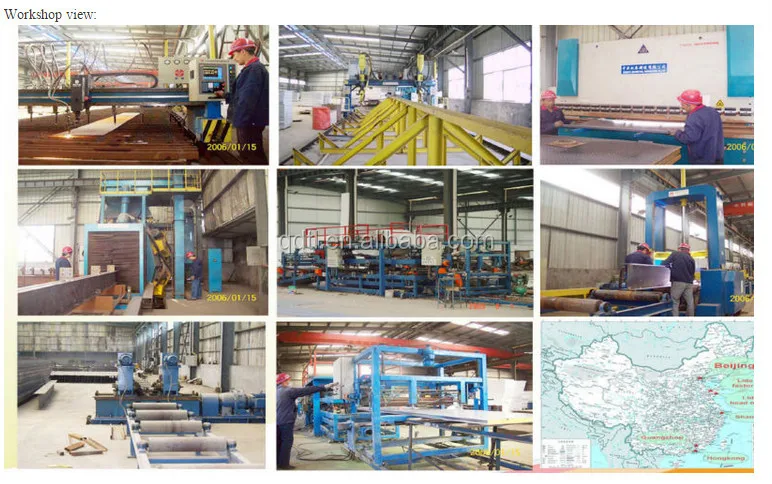

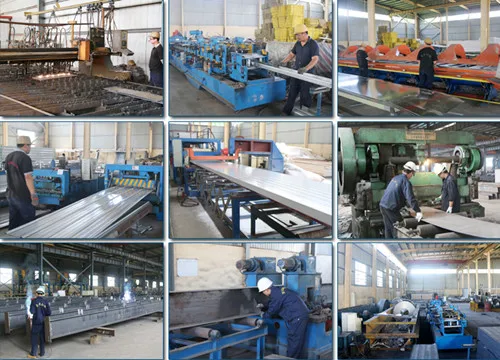

 Produce Line:

produce line_.jpg

 Process:




 Installation:




Feature:

1.light weight, it is almost 1/30 of the same masonry-concrete structure building ;lower foundation coast.



2.small frame section ,good rigidity,high availability of utilization area and space,especially for low-level long-span construction.



3.short construction period and small area occupy.



5.roof and wall use light weght sandwich panel or color steel sheeting ,better in globality ,high wind resistance and warthquake resistance ability,light and handy ,generous and colorful.

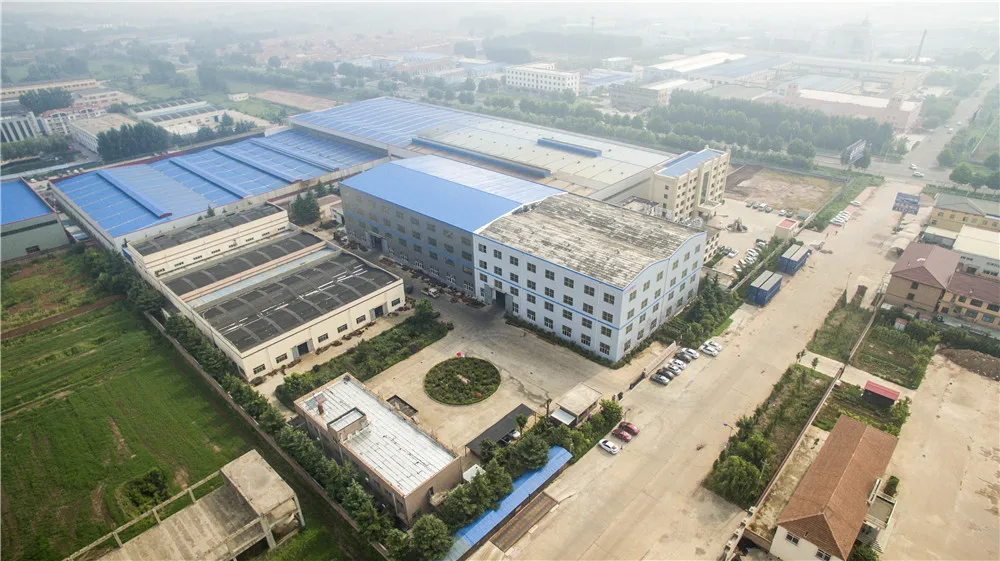

Company Information


Qingdao Tailong Steel Structure Co., Ltd. is a company specialized in designing, developing, manufacturing,installing,selling steel structures and undertaking various kinds of steel sructures.

The processing equipment includes automatic submerged arc welding machines, assembling machines, slitters, and shot blasting machines etc. Our main product ranges have H beam, C and Z shape steel purlins, color steel panels, sandwich panels, steel pipe and so on. These products are applied to workshop, warehouse, shop, prefabricated houses, and large space structure ect.



With advanced technology, strict guarantee system, pragmatic spirit of enterprise , best services and innovation, we have won outstanding achievement and reputation. We are now providing our products to both domestic and overseas market, such as South Korea, Turkey, Venezuela, Australia, and Africa etc.




Packaging & Shipping




 Main Product:


 Our Customer Or Activities:


FAQ



1. Square meter price for steel building(workshop, warehouse, hangar, etc.)?

A: From USD35-90. The price related to local climate, the building width, height, material, whether have crane, gutter or not, one floor or two floor etc.



2. About the installation?

A: We will provide detail installation drawings, then your side can easy to install the projects according to it. Also, If you need, we can provide an engineer to help you. we will supply all technical support during installation and after-sale service.



3. The diffrence of sandwich panel and steel plate: sandwich panel have good insulation performance, rock wool and fiber glass sandwich panel also have good fireproof performance.



Steel place have not the heat insulation and fireproof performance.
